EZYTAP 7800

EZYTAP7800-7800T

NEW EZTAP7800T (24cm Taller Tap)


Elegant Touch Pad Tap with Undersink Boiler and Undersink Chiller for Instant Hot & Chilled Water

Product Specification

EZYTAP7800/7800T

  • Elegant Tap system with touch control to dispense hot and chilled water at the touch of a button
  • The Tap comes in two different heights. The EZYTAP7800 has a dispensing height of 18.5cm and the EZYTAP7800T dispensing height at 24cm is 5.5cm taller
  • Fitting the touch pad tap requires a 35mm hole in the worktop to connect the tap to the Boiler and Chiller to the tap
  • 4 Litre Hot tank with an hourly output of up to 14 litres per hour above 90 degrees
  • Instant Draw Off 3 litres above 90 degrees
  • The Undersink Chiller provides up to 8 litres of Chilled Water below 10°C/hr
  • Fan assisted cooling
  • Refrigerant R134a
  • Simple cleaning and descaling: The tank can be removed opened and cleaned
  • Automatic safety thermal cut out to prevent boil dry and damage to the unit
  • High quality thermal insulation that meets UL 94 standards for safety
  • 2000 Watt SUS 316 stainless steel ring type element
Integrated Drip Tray Option
Eztray2 Intergrated Drip Tray
EZTRAY2
Integrated Drip Tray For The EZYTAP
Easy to fit with minimal disruption to the work surface

(EZTRAY2 is purchased separately)

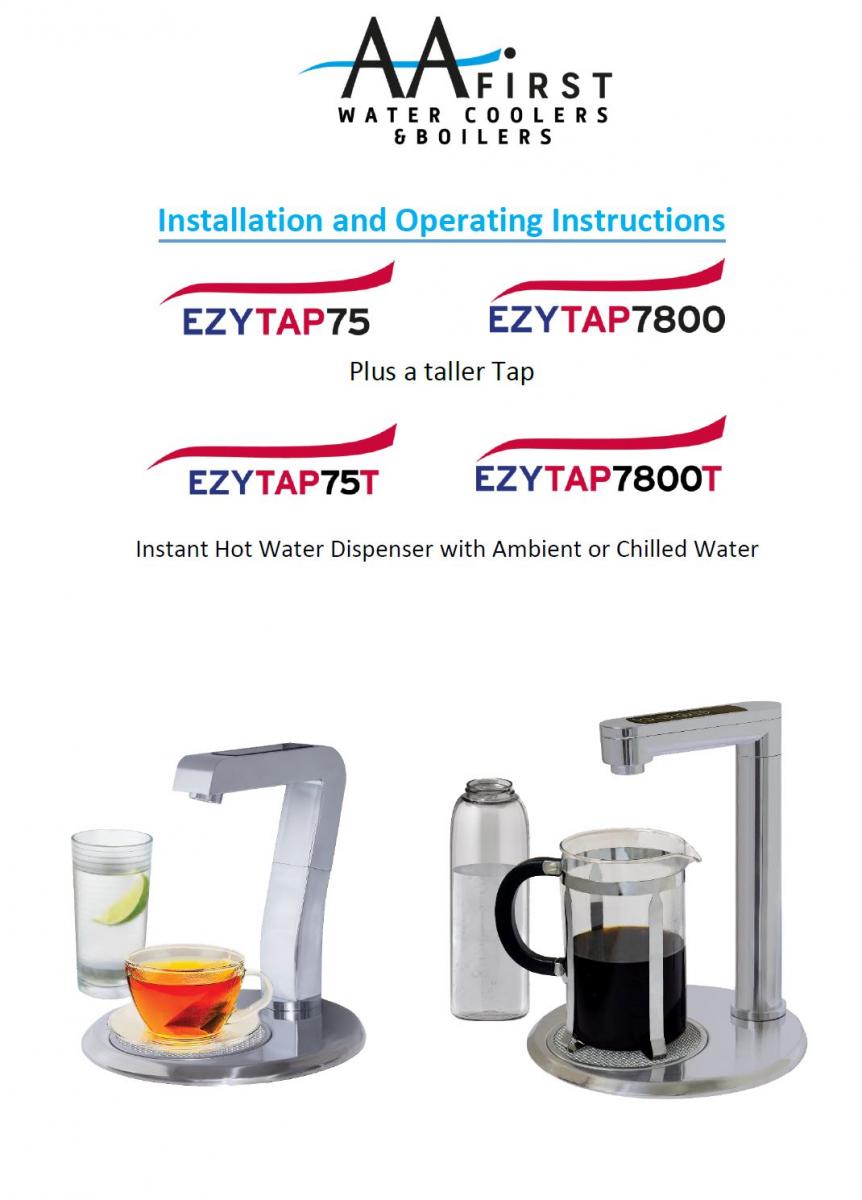

Technical Drawing & Parts List:
Technical Thumb:
